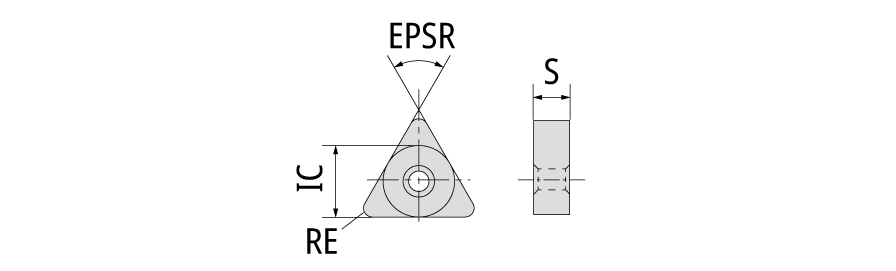

| Application | | Ceramic and carbide insert | | Cutting Edge Material | Ceramic |
| Corner Radius (RE) | 1.2 mm | Grade | HC2 |
| Insert Thickness (S) | 4.76 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.525 mm | Body Material | Carbide |
| Insert Included Angle (EPSR) | 60 Degrees | Unit | M |
Product Features
| COO | Japan | BrandName | NTK |
| FamilyName | TNGA type insert |
Shipping Info
Weight per item
0.0023
Name

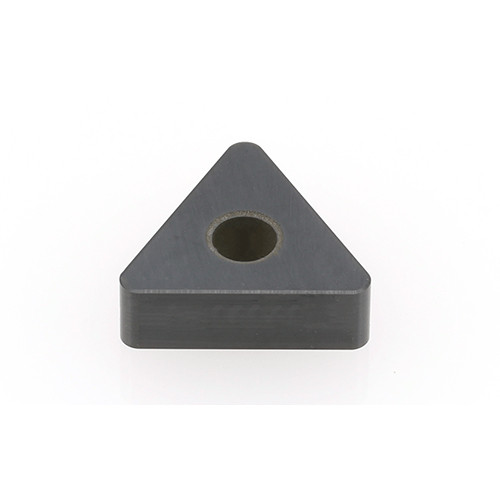

Turning Indexable Inserts
FamilyName
TNGA type insert
BrandName
NTK
