BT40FCMAXIN32X108

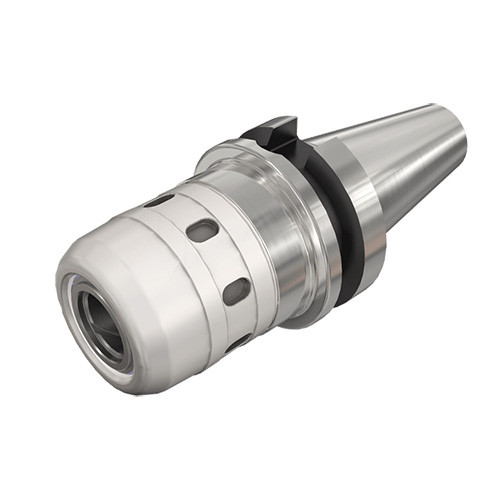

Power chuck holder with BT MAS-403 face contact AD tapered shank.

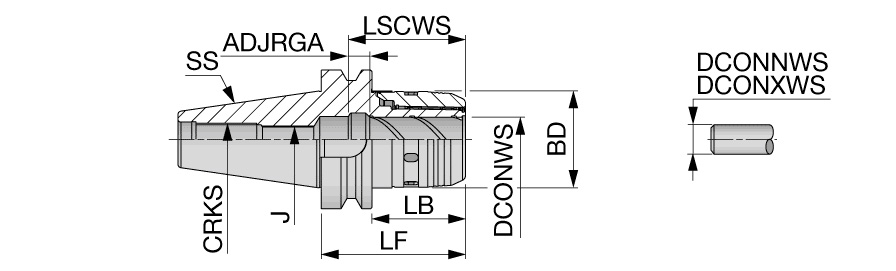

| Body Diameter (BD) | 70 mm | Shank Size (SS) | 40. |
| Body Length (LB) | 80.5 mm | Tool Type | BT |
| Overall Length (OAL) | 108 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 6 mm |
| Connection Diameter Workpiece Side (DCONWS) | 32 mm | Measurement Type | Metric |
| Connection Retention Knob Thread Size (CRKS) | M16 | Thread Designation Inside (THID) | M16 |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 32 mm | Body Material | Steel |
| Application | | Tapered shape interface | | Unit | M |
Product Features
| Family Description | Power chuck holder with BT MAS-403 face contact AD tapered shank. | FamilyName | BT-FC-TUNGMAX |
| Remarks | Applicable for 10 MPa coolant | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0000
Name
Milling Chucks
FamilyName
BT-FC-TUNGMAX
BrandName
Tungaloy
