CAT50MAXIN3/4X4.13BIN

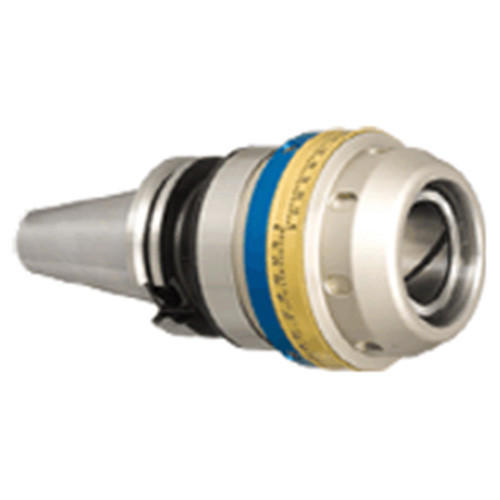

TungMax Balancable endmill chuck holders with CAT shank

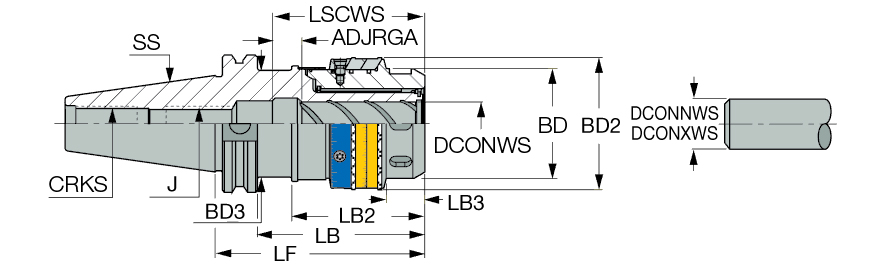

| Body Diameter (BD) | 1.988″ | Shank Size (SS) | 50. |
| Body Length (LB) | 3.386″ | Tool Type | Caterpillar |
| Overall Length (OAL) | 4.138″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1/4″ |
| Connection Diameter Workpiece Side (DCONWS) | 3/4″ | Measurement Type | Inch |
| Connection Retention Knob Thread Size (CRKS) | 1-8 | Thread Designation Inside (THID) | M16 |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 3/4″ | Body Material | Steel |
| Application | | Tapered shape interface | | Unit | I |
Product Features
| Family Description | TungMax Balancable endmill chuck holders with CAT shank | FamilyName | CAT-TUNGMAX BIN (balancable) |
| COO | ISRAEL | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Milling Chucks
FamilyName
CAT-TUNGMAX BIN (balancable)
BrandName
Tungaloy
