BT40FM40

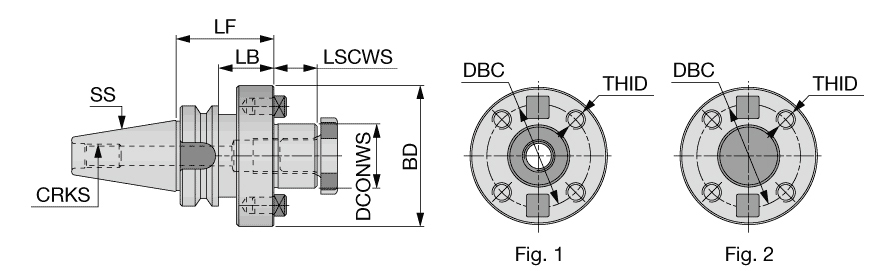

| Connection Diameter Workpiece Side (DCONWS) | 40 mm | Application | | Tapered shape interface | |
| Shank Size (SS) | BT40 | Tool Type | BT |
| Body Length (LB) | 22 mm | Measurement Type | Metric |
| Body Diameter (BD) | 88 mm | Body Material | Steel |
| Overall Length (OAL) | 60 mm | Unit | M |
| Connection Retention Knob Thread Size (CRKS) | M16 |
Product Features

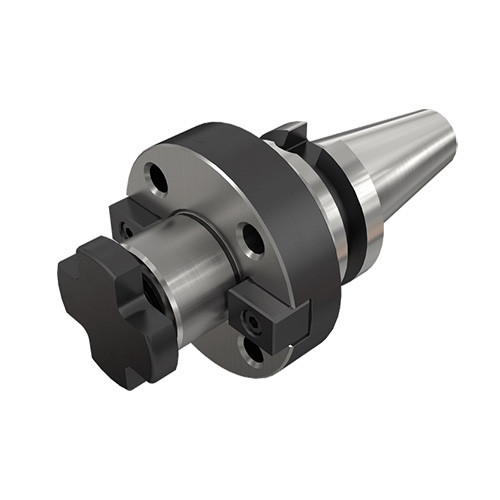

| Family Description | Face mill holder with BT shank | FamilyName | BT-FM (for Face mill) |
| Remarks | Wrench is not included. | BrandName | Tungaloy |
| COO | ITALY |
Shipping Info
Weight per item
2.6800
Name
Shell Mill Holders
FamilyName
BT-FM (for Face mill)
BrandName
Tungaloy
