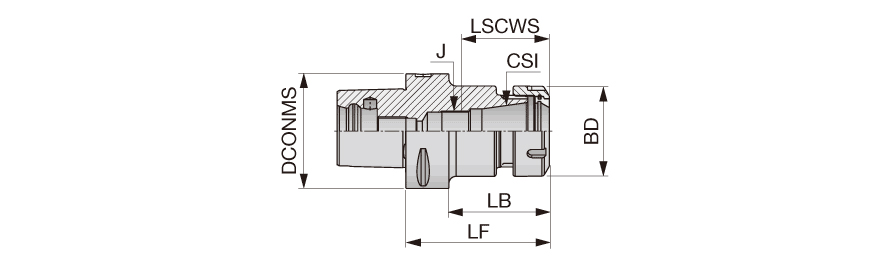

| Shank Size (SS) | C3 | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Connection Size (CSI) | ER16 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
| Body Diameter (BD) | 30 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 10 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Shank Length (LS) | 19 mm | Body Material | Steel |
| Functional Length (LF) | 30 mm | Unit | M |
| Application | | Face contact interface | |
Product Features

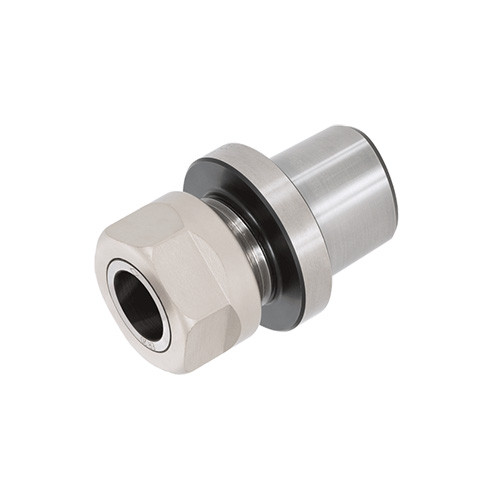

| Family Description | TungCap ER collet chucks holders (DIN 6499) | FamilyName | C-ER collet chuck |
| Remarks | Applicable for 7 MPa coolant. Wrench is not included | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Collet Chucks
FamilyName
C-ER collet chuck
BrandName
Tungaloy
