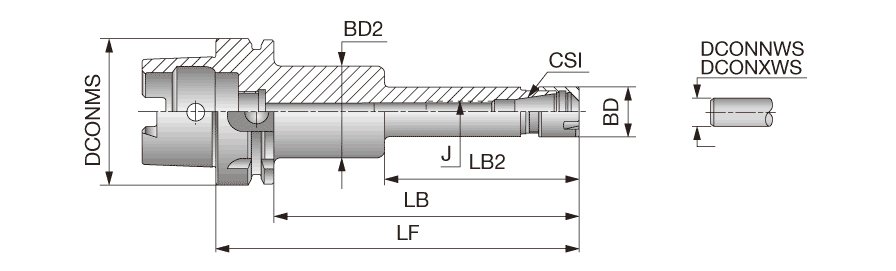

| Shank Size (SS) | HSK A 63 | Application | | Face contact interface | |
| Connection Size (CSI) | ER16 | Tool Type | HSK |
| Body Diameter (BD) | 22 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.5 mm |
| Body Length (LB) | 74 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 10 mm |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Measurement Type | Metric |
| Shank Length (LS) | 32 mm | Body Material | Steel |
| Functional Length (LF) | 100 mm | Unit | M |
Product Features
| Family Description | ER Mini-collet chucks with HSK-A shank | FamilyName | HSK A-ER M (mini collet) |
| COO | ISRAEL | BrandName | Tungaloy |
Shipping Info
Weight per item
0.8640
Name
Collet Chucks
FamilyName
HSK A-ER M (mini collet)
BrandName
Tungaloy
