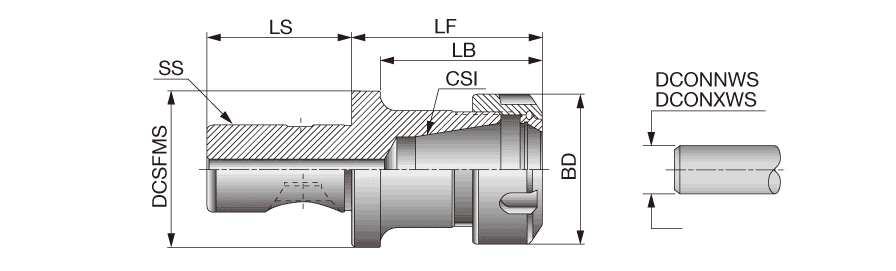

| Shank Size (SS) | CF4 | Application | | Straight shape | |
| Connection Size (CSI) | ER32 | Tool Type | Interchangeable Milling Connectors |
| Body Diameter (BD) | 50 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Body Diameter_3 (BD_3) | 44 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Body Length (LB) | 92 mm | Measurement Type | Metric |
| Shank Length (LS) | 42 mm | Body Material | Steel |
| Functional Length (LF) | 100 mm | Unit | M |
Product Features

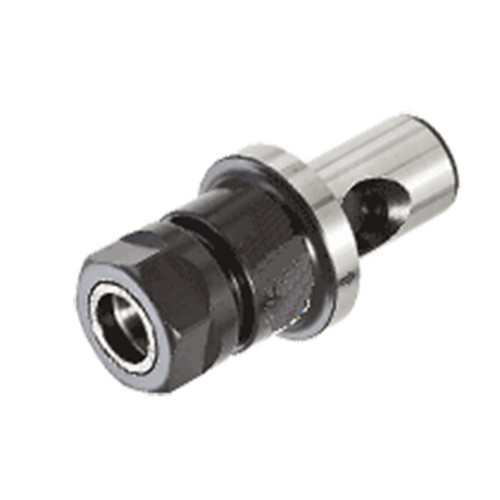

| Family Description | TungFit collet chuck adapter | FamilyName | ER-CF collet chuck adapter |
| Remarks | Tightening torque: 58.8 Nm | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0000
Name
Collet Chucks
FamilyName
ER-CF collet chuck adapter
BrandName
Tungaloy
