GFIST20ER20

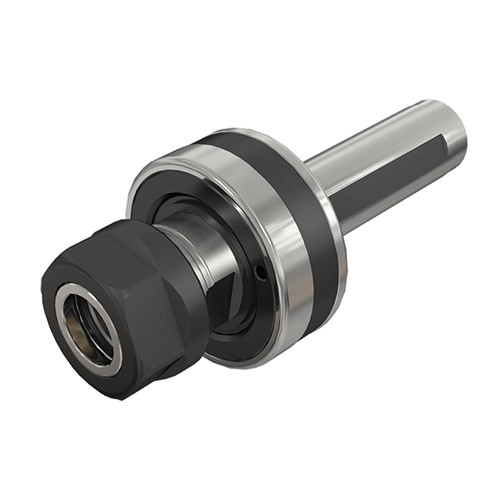

Floating Reamer DIN 6499 Collet Chucks with Cylindrical Shanks with a Clamping Flat

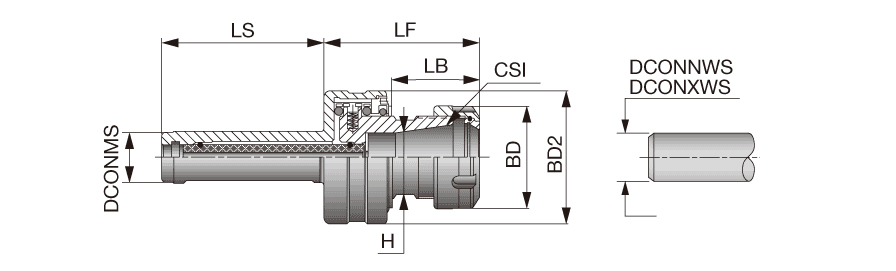

| Shank Size (SS) | 20. | Application | | Straight shape | |
| Connection Size (CSI) | ER20 | Tool Type | Cylindrical Shanks |
| Body Diameter (BD) | 34 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
| Body Length (LB) | 34.5 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 13 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Measurement Type | Metric |
| Shank Length (LS) | 65 mm | Body Material | Steel |
| Functional Length (LF) | 55.5 mm | Unit | M |
Product Features
| Family Description | Floating Reamer DIN 6499 Collet Chucks with Cylindrical Shanks with a Clamping Flat | FamilyName | GFI-ST-ER(reamer chuck) |
| Remarks | Maximum 2000 min 1 | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.5590
Name
Collet Chucks
FamilyName
GFI-ST-ER(reamer chuck)
BrandName
Tungaloy
