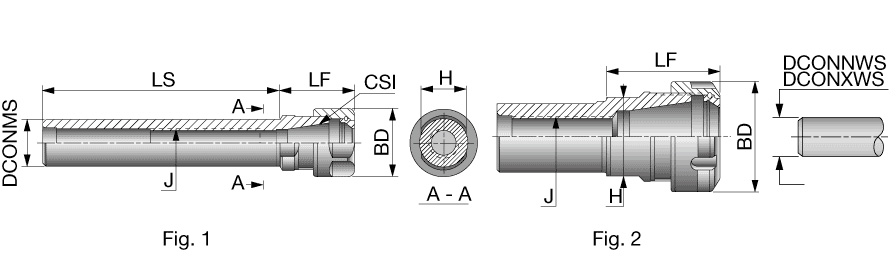

| Shank Size (SS) | 32. | Tool Type | Cylindrical Shanks |
| Connection Size (CSI) | ER32 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Body Diameter (BD) | 50 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Shank Length (LS) | 150 mm | Body Material | Steel |
| Functional Length (LF) | 52 mm | Unit | M |
| Application | | Straight shape | |
Product Features
| Family Description | ER collet chucks with Straight shank | FamilyName | ST-ER (collet chuck) |
| Remarks | F indicates a flat on the shank. | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
1.0870
Name
Collet Chucks
FamilyName
ST-ER (collet chuck)
BrandName
Tungaloy
