CAT50ER25X6.000B

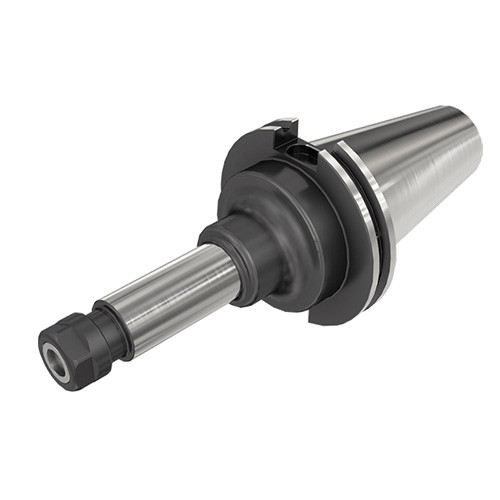

DIN 6499 ER collet chuck holder with Caterpillar form ADB tapered shank.

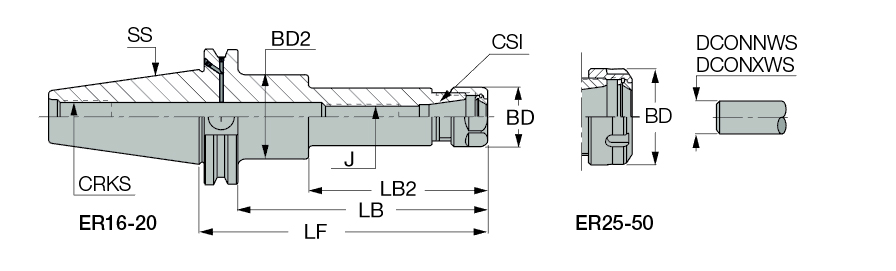

| Shank Size (SS) | CAT50 | Application | | Tapered shape interface | |
| Connection Size (CSI) | ER25 | Tool Type | Caterpillar |
| Body Diameter (BD) | 1.654″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.041″ |
| Body Diameter_3 (BD_3) | 2.752″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.632″ |
| Body Length (LB) | 5-1/4″ | Measurement Type | Inch |
| Body Length_2 (LB_2) | 4.62″ | Body Material | Steel |
| Shank Length (LS) | 4″ | Unit | I |
| Functional Length (LF) | 6″ |
Product Features
| Family Description | DIN 6499 ER collet chuck holder with Caterpillar form ADB tapered shank. | FamilyName | CAT-ER collet chuck |
| COO | TURKEY | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Collet Chucks
FamilyName
CAT-ER collet chuck
BrandName
Tungaloy
