ST25X75ER25MF

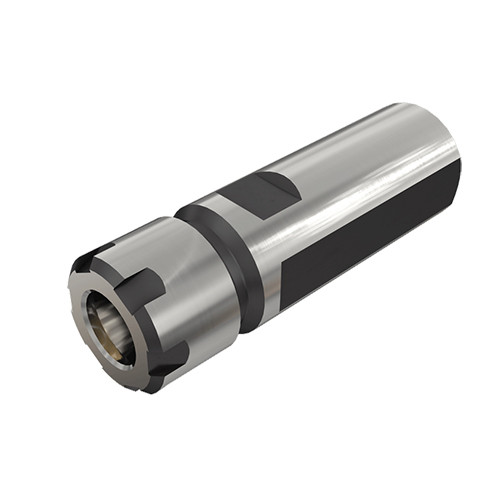

ER Mini-collet chucks with flat cotter for SWISS type machines

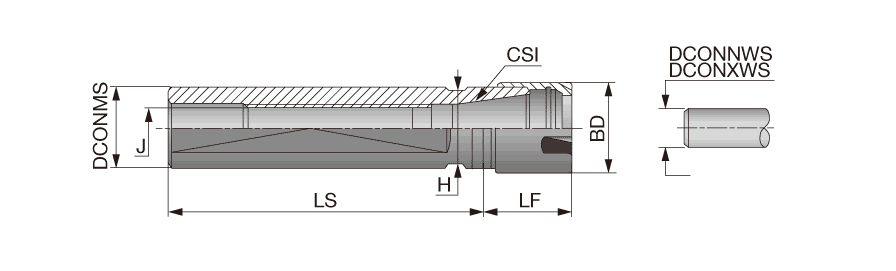

| Shank Size (SS) | 25. | Tool Type | Cylindrical Shanks |
| Connection Size (CSI) | ER25 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
| Body Diameter (BD) | 35 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 16 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Measurement Type | Metric |
| Shank Length (LS) | 75 mm | Body Material | Steel |
| Functional Length (LF) | 48 mm | Unit | M |
| Application | | Straight shape | |
Product Features
| Family Description | ER Mini-collet chucks with flat cotter for SWISS type machines | FamilyName | ST-ER-MF (swiss type) |
| COO | ISRAEL | BrandName | Tungaloy |
Shipping Info
Weight per item
0.3800
Name
Collet Chucks
FamilyName
ST-ER-MF (swiss type)
BrandName
Tungaloy
