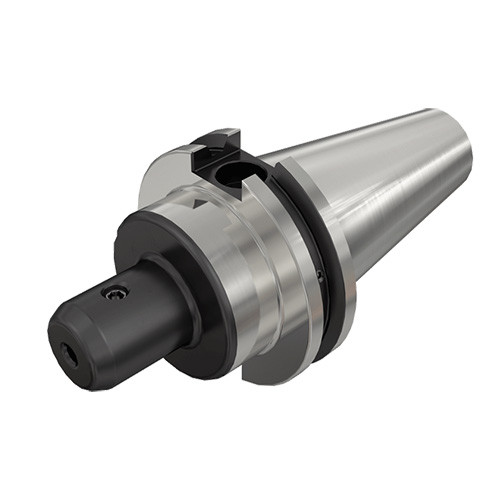

CAT40EM1/4X2.500
Weldon endmill holder with Caterpillar form ADB tapered shank.

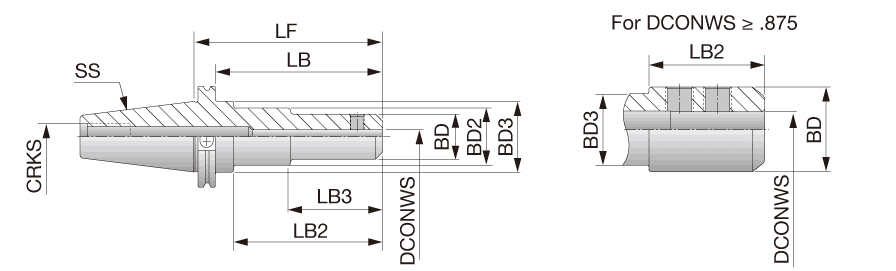

| Shank Type | Weldon | Connection Retention Knob Thread Size (CRKS) | 5/8-11 |
| Connection Diameter Workpiece Side (DCONWS) | 1/4″ | Shank Size (SS) | 40. |
| Body Diameter (BD) | 1″ | Tool Type | Caterpillar |
| Body Diameter_2 (BD_2) | 1.752″ | Body Length (LB) | 1-3/4″ |
| Overall Length (OAL) | 2-1/2″ | Body Length_2 (LB_2) | 1.121″ |
| Application | | Tapered shape interface | | Body Material | Steel |
| Measurement Type | Inch | Unit | I |
Product Features
| Family Description | Weldon endmill holder with Caterpillar form ADB tapered shank. | FamilyName | CAT-EM (endmill holder) |
| COO | TURKEY | BrandName | Tungaloy |
Shipping Info
Weight per item
2.4736
Name
End Mill Holders
FamilyName
CAT-EM (endmill holder)
BrandName
Tungaloy
