DIN208050EM50X100

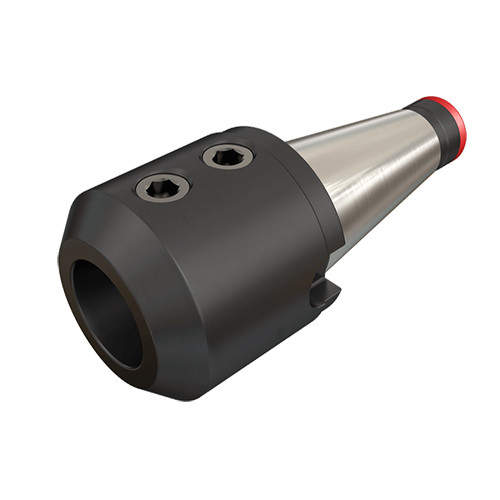

Screw locking endmill holders with DIN2080 shank

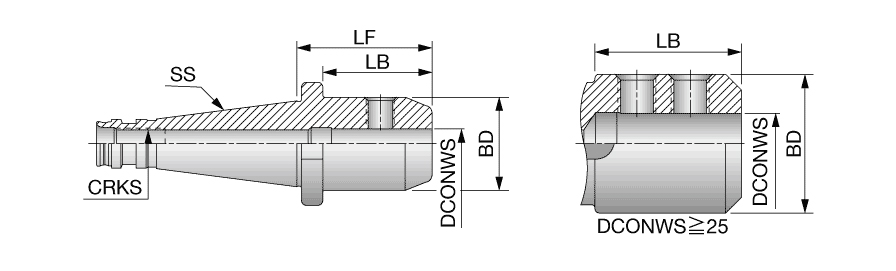

| Shank Type | Weldon | Connection Retention Knob Thread Size (CRKS) | M24 |
| Connection Diameter Workpiece Side (DCONWS) | 50 mm | Shank Size (SS) | 50. |
| Body Diameter (BD) | 100 mm | Tool Type | DIN 2080 |
| Overall Length (OAL) | 100 mm | Body Length (LB) | 84.8 mm |
| Application | | Tapered shape interface | | Body Material | Steel |
| Measurement Type | Metric | Unit | M |
Product Features
| Family Description | Screw locking endmill holders with DIN2080 shank | FamilyName | DIN2080-EM (endmill holder) |
| COO | ITALY | BrandName | Tungaloy |
Shipping Info
Weight per item
6.2130
Name
End Mill Holders
FamilyName
DIN2080-EM (endmill holder)
BrandName
Tungaloy
