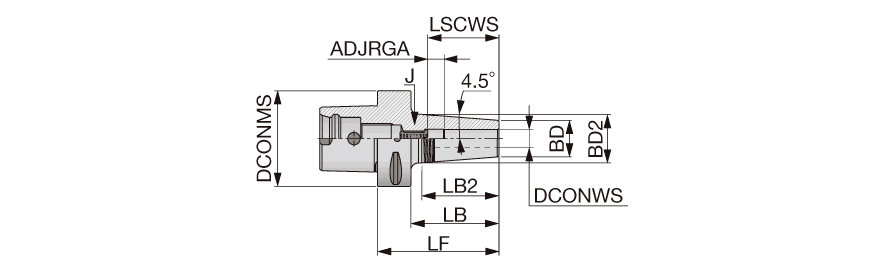

| Connection Diameter Machine Side (DCONMS) | 40 mm | Shank Type | Round |
| Connection Diameter Workpiece Side (DCONWS) | 20 mm | Application | | Face contact interface | |
| Shank Size (SS) | 40. | Thread Designation Inside (THID) | M16 |
| Body Length (LB) | 65 mm | Measurement Type | Metric |
| Body Length_2 (LB_2) | 57.2 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Diameter (BD) | 33 mm | Body Material | Steel |
| Body Diameter_2 (BD_2) | 42 mm | Unit | M |
| Overall Length (OAL) | 85 mm |
Product Features
| Family Description | TungCap Thermal shrinking holders | FamilyName | C-SRKIN |
| Remarks | Applicable for 7 MPa coolant | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0000
Name

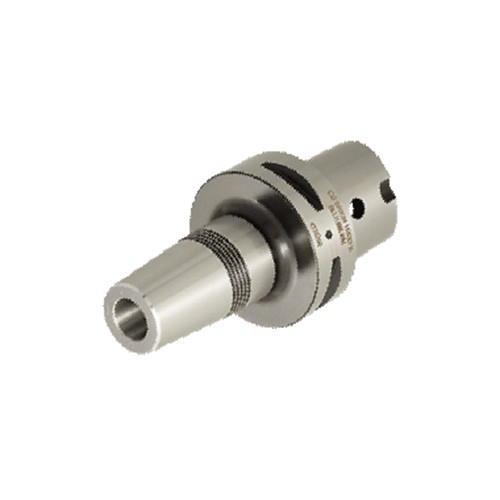

Shrink Fit Holders
FamilyName
C-SRKIN
BrandName
Tungaloy
