CAT50FCSRKIN1-1/4X4.0

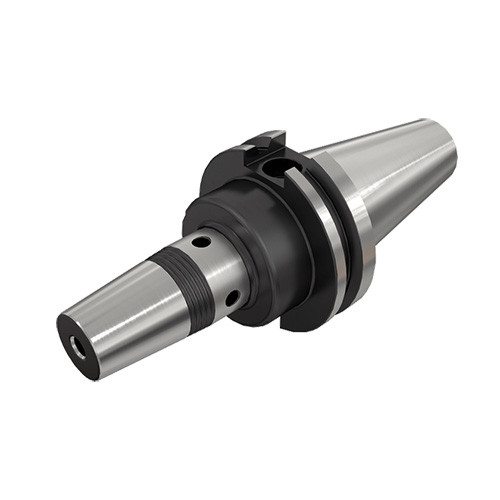

Thermal shrinking holder with Caterpillar face contact AD tapered shank, for carbide, HSS and steel shanks.

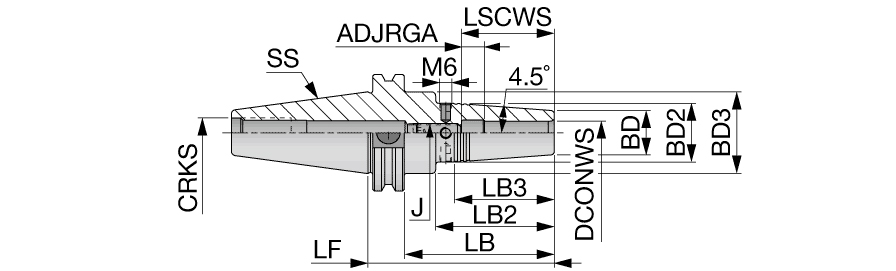

| Connection Diameter Workpiece Side (DCONWS) | 1-1/4″ | Shank Type | Round |
| Shank Size (SS) | 50. | Application | | Tapered shape interface | |
| Body Length (LB) | 3-1/4″ | Thread Designation Inside (THID) | M16 |
| Body Length_2 (LB_2) | 2.62″ | Measurement Type | Inch |
| Body Diameter (BD) | 1.732″ | Tool Type | Caterpillar |
| Body Diameter_2 (BD_2) | 2.087″ | Body Material | Steel |
| Overall Length (OAL) | 4″ | Unit | I |
Product Features
| Family Description | Thermal shrinking holder with Caterpillar face contact AD tapered shank, for carbide, HSS and steel shanks. | FamilyName | CAT-FC-SRKIN |
| Remarks | Please use an induction heating unit for SRKIN holder. Applicable for 10 MPa coolant. | BrandName | Tungaloy |
| COO | ITALY |
Shipping Info
Weight per item
0.0000
Name
Shrink Fit Holders
FamilyName
CAT-FC-SRKIN
BrandName
Tungaloy
