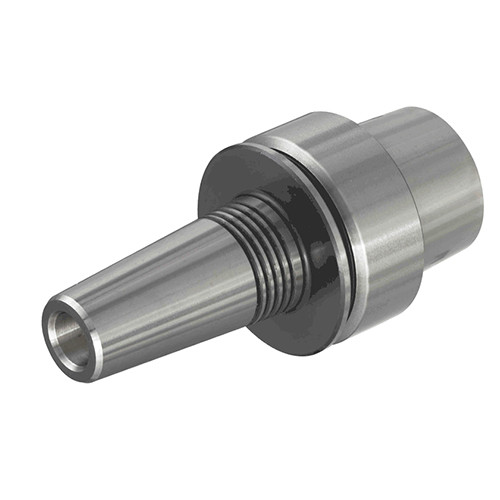

HSKE32SRK3X45
TungShrink thermal shrinking holder for carbide shank with HSK-E shank

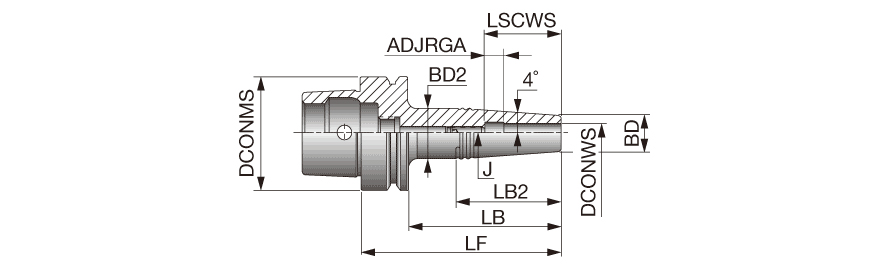

| Connection Diameter Machine Side (DCONMS) | 32 mm | Shank Type | Round |
| Connection Diameter Workpiece Side (DCONWS) | 3 mm | Application | | Face contact interface | |
| Shank Size (SS) | 32. | Thread Designation Inside (THID) | M4 |
| Body Length (LB) | 45 mm | Measurement Type | Metric |
| Body Length_2 (LB_2) | 30 mm | Tool Type | HSK |
| Body Diameter (BD) | 10 mm | Body Material | Steel |
| Body Diameter_2 (BD_2) | 13 mm | Unit | M |
| Overall Length (OAL) | 65 mm |
Product Features
| Family Description | TungShrink thermal shrinking holder for carbide shank with HSK-E shank | FamilyName | HSK E-SRK (TungShrink) |
| COO | ISRAEL | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Shrink Fit Holders
FamilyName
HSK E-SRK (TungShrink)
BrandName
Tungaloy
