CAT40SRK3/8X2.000

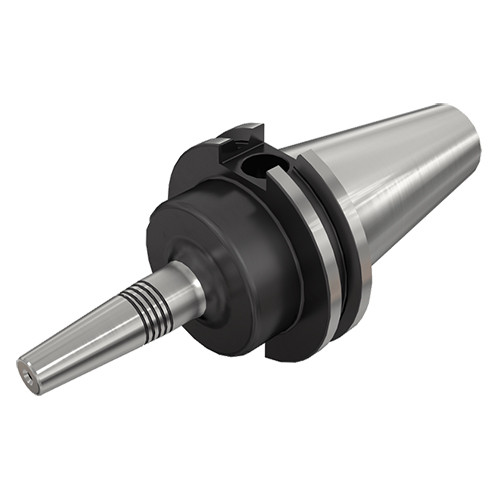

Thermal shrinking holder with Caterpillar tapered shank, for carbide shank only.

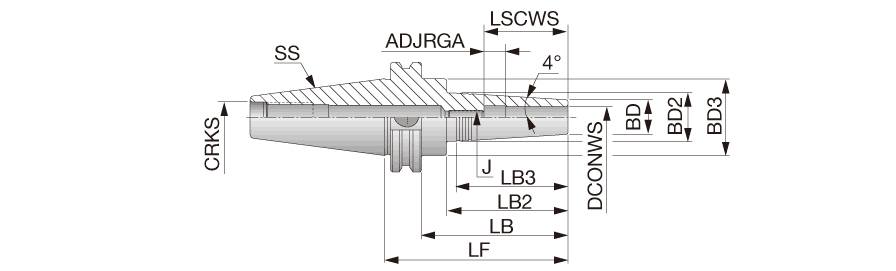

| Connection Diameter Workpiece Side (DCONWS) | 3/8″ | Shank Type | Round |
| Shank Size (SS) | 40. | Application | | Tapered shape interface | |
| Body Length (LB) | 2.63″ | Thread Designation Inside (THID) | M12 |
| Body Length_2 (LB_2) | 2″ | Measurement Type | Inch |
| Body Diameter (BD) | 0.63″ | Tool Type | Caterpillar |
| Body Diameter_2 (BD_2) | 0.866″ | Body Material | Steel |
| Overall Length (OAL) | 3.38″ | Unit | I |
Product Features
| Family Description | Thermal shrinking holder with Caterpillar tapered shank, for carbide shank only. | FamilyName | CAT-SRK (TungShrink) |
| COO | ISRAEL | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Shrink Fit Holders
FamilyName
CAT-SRK (TungShrink)
BrandName
Tungaloy
