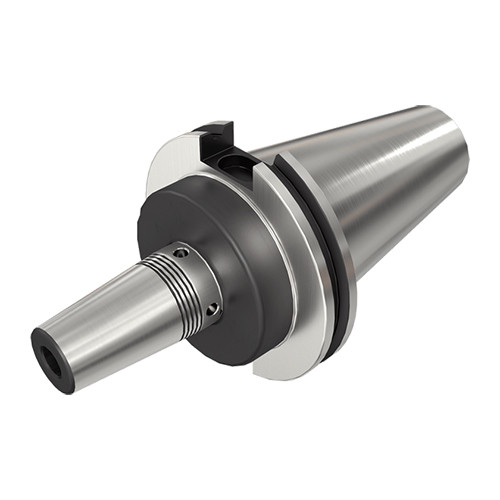

CAT50SRKIN1X4.000
Thermal shrinking holder with integral Caterpillar tapered shank, for carbide, HSS and steel shank with h6 tolerance.

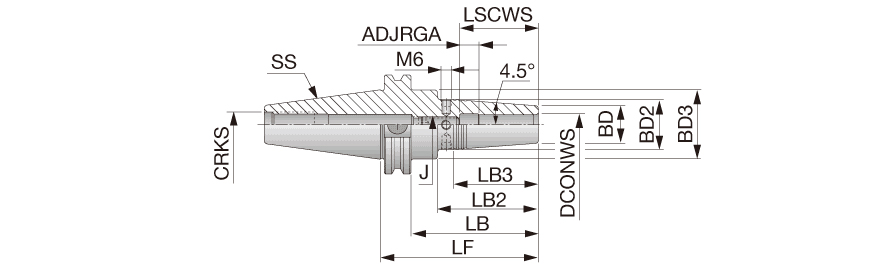

| Connection Diameter Workpiece Side (DCONWS) | 1″ | Shank Type | Round |
| Shank Size (SS) | 50. | Application | | Tapered shape interface | |
| Body Length (LB) | 3-1/4″ | Thread Designation Inside (THID) | M16 |
| Body Length_2 (LB_2) | 2.62″ | Measurement Type | Inch |
| Body Diameter (BD) | 1.732″ | Tool Type | Caterpillar |
| Body Diameter_2 (BD_2) | 2.087″ | Body Material | Steel |
| Overall Length (OAL) | 4″ | Unit | I |
Product Features
| Family Description | Thermal shrinking holder with integral Caterpillar tapered shank, for carbide, HSS and steel shank with h6 tolerance. | FamilyName | CAT-SRKIN (TungShrink) |
| COO | ISRAEL | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Shrink Fit Holders
FamilyName
CAT-SRKIN (TungShrink)
BrandName
Tungaloy
