| Connection Diameter Machine Side (DCONMS) | 50 mm | Application | | Face contact interface | |
| Clamping Length Workpiece Side (LSCWS) | 57 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 20 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Shank Height (H) | 20 mm | Measurement Type | Metric |
| Functional Length (LF) | 55.2 mm | Body Material | Steel |
| Functional Width (WF) | 8 mm | Unit | M |
| Shank Size (SS) | C5 |
Product Features

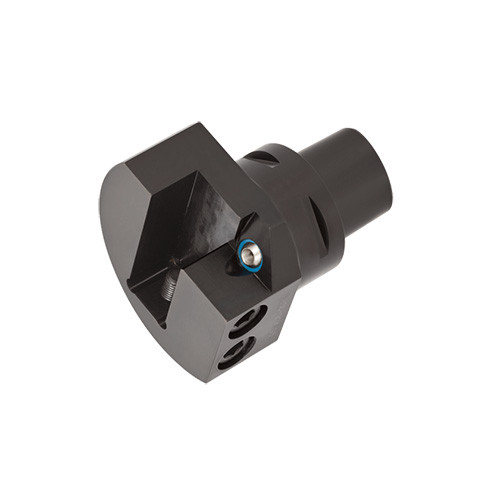

| Family Description | TungCap Adapter for Square Shank toolholder | FamilyName | C-ADER/L TungCap adapter |
| Remarks | Regular shank should be shortened. Applicable for 7 MPa coolant | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
1.4530
Name
Adapters
FamilyName
C-ADER/L TungCap adapter
BrandName
Tungaloy
