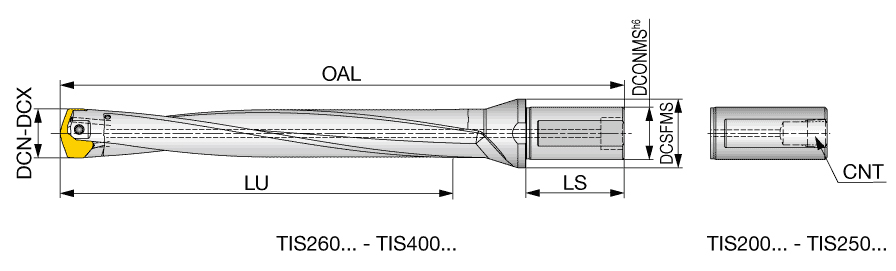

| Usable Length (LU) | 203.9 mm | Shank Length (LS) | 60 mm |
| Application | | General Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | indexable head drills | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Master Insert Identification (MIID) | SMP250 |
| Insert Seat Size Code (SSC) | 25 | Point Length (PL) | 3.91 mm |
| Cutting Diameter Minimum (DCN) | 25 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 25.9 mm | Flange Diameter (DF) | 40 mm |
| Overall Length (OAL) | 298.7 mm | Unit | M |
Product Features

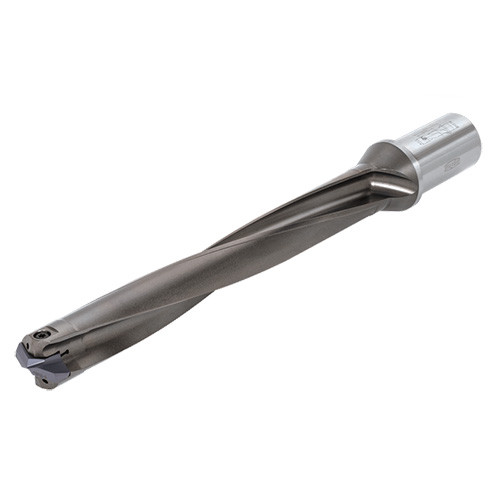

| Family Description | DrillForceMeister Exchangeable head drill | COO | SOUTH KOREA |
| Remarks | Note: An overall length (OAL) differs based on each head geometry. |
Shipping Info
Weight per item
0.0000
