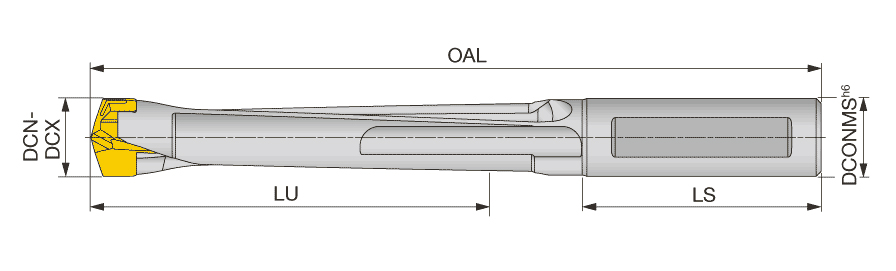

| Usable Length (LU) | 52 mm | Shank Length (LS) | 41 mm |
| Application | | General Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | indexable head drills | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Master Insert Identification (MIID) | DMP100 |
| Insert Seat Size Code (SSC) | 10 | Point Length (PL) | 1.47 mm |
| Cutting Diameter Minimum (DCN) | 10 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 10.4 mm | Unit | M |
| Overall Length (OAL) | 106.1 mm |
Product Features

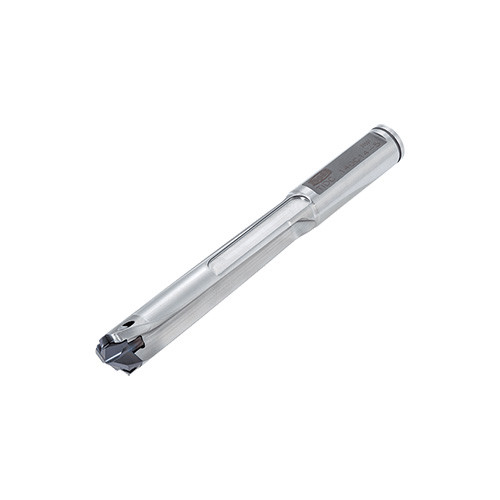

| Family Description | DrillMeister TIDC L/D=5 Indexable head drills | COO | JAPAN |
| Remarks | Note: An overall length depends on the type of drill head which is mounted on. |
Shipping Info
Weight per item
0.0790
