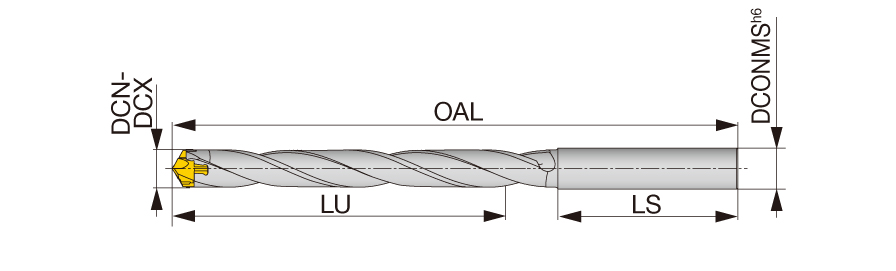

| Usable Length (LU) | 170 mm | Overall Length (OAL) | 257.92 mm |
| Application | | General Drilling | | Shank Length (LS) | 70 mm |
| Tool Type | indexable head drills | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Master Insert Identification (MIID) | DMP190 |
| Insert Seat Size Code (SSC) | 19 | Point Length (PL) | 2.88 mm |
| Cutting Diameter Minimum (DCN) | 19 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 19.9 mm | Unit | M |
Product Features

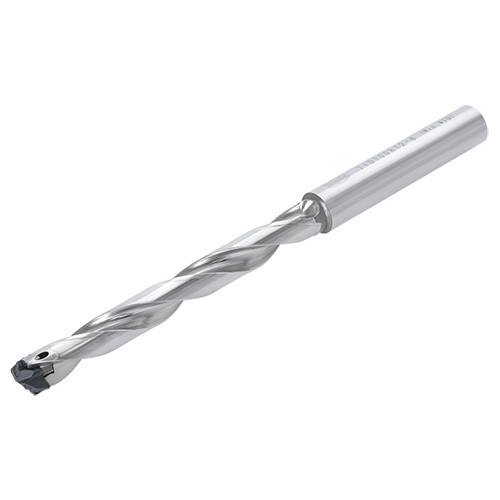

| Family Description | DrillMeister Indexable head drill with cylindrical shank | COO | JAPAN |
| Remarks | Note: An overall length depends on the type of drill head which is mounted on. DMC drill heads are recommended when using 8xD bodies. |
Shipping Info
Weight per item
0.0000
