A 63-RSG 8-185-M75

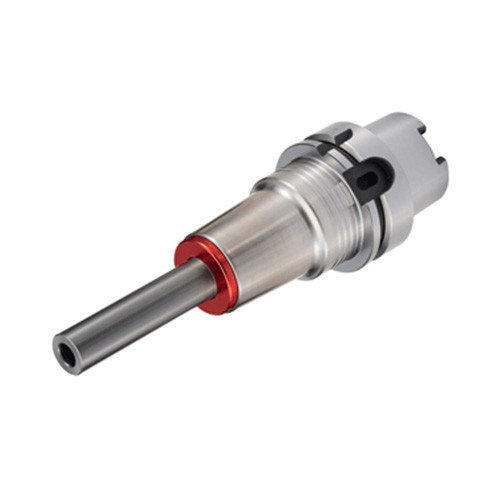

TungFlex modular tooling system incorporated carbide arbor with HSK A shank

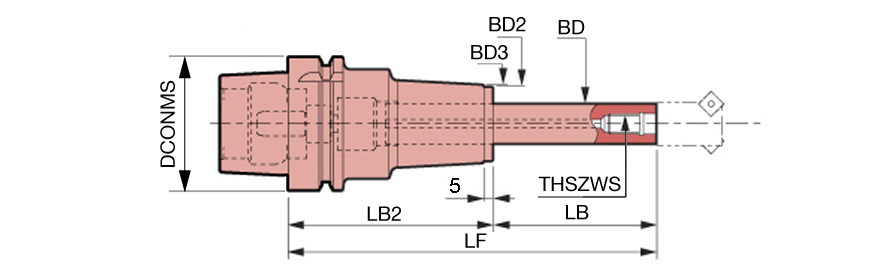

| Shank Size (SS) | 63. | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Length (LB) | 75 mm | Overall Length (OAL) | 185 mm |
| Body Diameter (BD) | 15 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Body Material | Steel |
| Application | | Face contact interface | | Unit | M |
| Body Length_2 (LB_2) | 110 mm |
Product Features
| Family Description | TungFlex modular tooling system incorporated carbide arbor with HSK A shank | FamilyName | RED screw arbor HSK (TungFlex) |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Drill Chucks & Adapters
FamilyName
RED screw arbor HSK (TungFlex)
BrandName
Tungaloy
