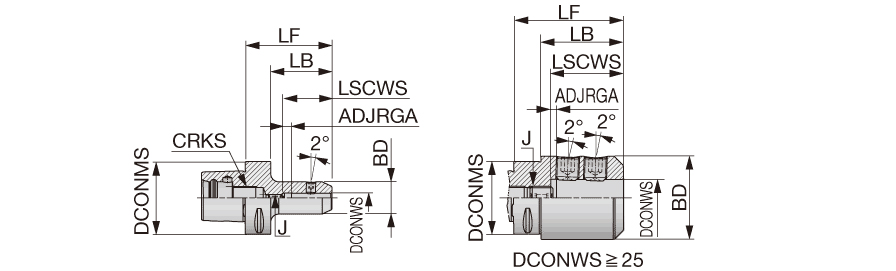

| Shank Size (SS) | 63. | Connection Retention Knob Thread Size (CRKS) | M20 |
| Body Length (LB) | 63 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Diameter (BD) | 48 mm | Overall Length (OAL) | 85 mm |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Measurement Type | Metric |
| Application | | Face contact interface | | Body Material | Steel |
| Connection Diameter Workpiece Side (DCONWS) | 16 mm | Unit | M |
Product Features

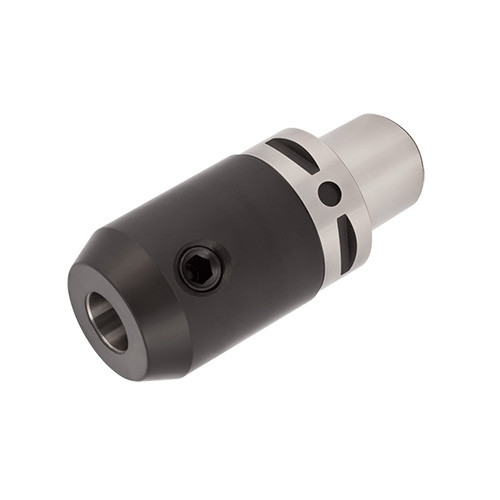

| Family Description | TungCap drill holders (DIN1835 Form E - whistle notch) | FamilyName | C-EM-E drill holder |
| Remarks | Applicable for 7 MPa coolant | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
1.5690
Name
Drill Chucks & Adapters
FamilyName
C-EM-E drill holder
BrandName
Tungaloy
