DIN6987140CF4-L
TungFit quick change style modular tooling system with DIN69871 shank

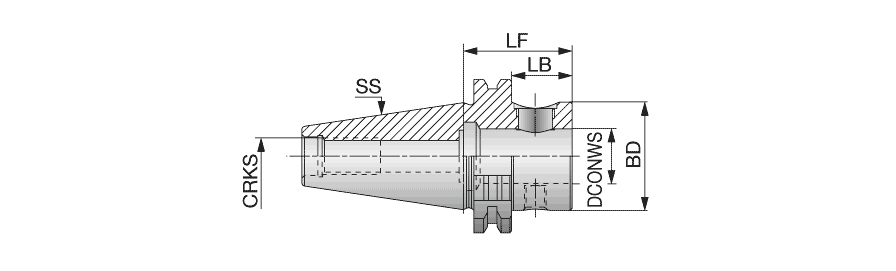

| Shank Size (SS) | 40. | Tool Type | DIN 69871 |
| Body Length (LB) | 80.9 mm | Overall Length (OAL) | 100 mm |
| Body Diameter (BD) | 44.5 mm | Measurement Type | Metric |
| Application | | Tapered shape interface | | Body Material | Steel |
| Connection Diameter Workpiece Side (DCONWS) | 25 mm | Unit | M |
| Connection Retention Knob Thread Size (CRKS) | M16 |
Product Features
| Family Description | TungFit quick change style modular tooling system with DIN69871 shank | FamilyName | DIN69871-CF (TungFit) |
| Remarks | Tightening torque: 58.8 Nm Add B for coolant through the flange. | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
1.7680
Name
Drill Chucks & Adapters
FamilyName
DIN69871-CF (TungFit)
BrandName
Tungaloy
