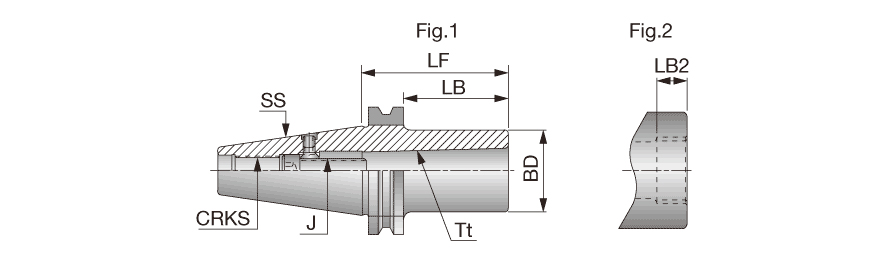

| Shank Size (SS) | 40. | Tool Type | DIN 69871 |
| Body Length (LB) | 30.9 mm | Overall Length (OAL) | 50 mm |
| Body Diameter (BD) | 25 mm | Measurement Type | Metric |
| Application | | Tapered shape interface | | Body Material | Steel |
| Connection Thread Nominal Size Workpiece Side (THSZWS) | M6 | Unit | M |
| Connection Retention Knob Thread Size (CRKS) | M16 |
Product Features

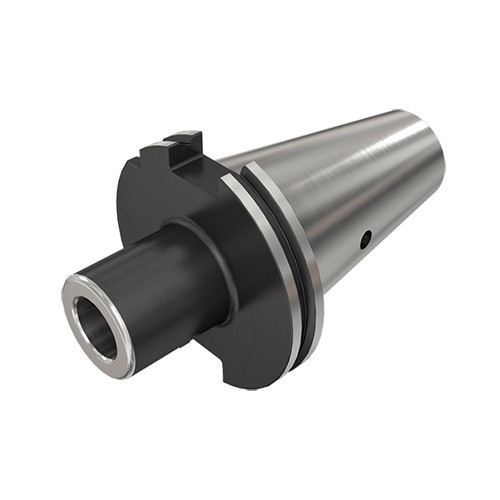

| Family Description | Morse taper holder with draw bar for DIN69871 | FamilyName | DIN69871-MT DRW (draw bar) |
| COO | TURKEY | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Drill Chucks & Adapters
FamilyName
DIN69871-MT DRW (draw bar)
BrandName
Tungaloy
