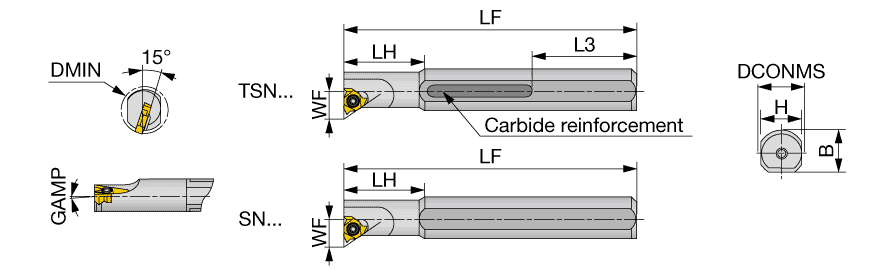

| Connection Diameter Machine Side (DCONMS) | 12 mm | Functional Width (WF) | 8.5 mm |
| Minimum Bore Diameter (DMIN) | 15 mm | Master Insert Identification (MIID) | 11IRA60 |
| Head Length (LH) | 28 mm | Body Material | Carbide |
| Overall Length (OAL) | 170 mm | Tool Type | Internal Indexable Threading Tools |
| Shank Height (H) | 11 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Application | | Internal Threading | |
Product Features

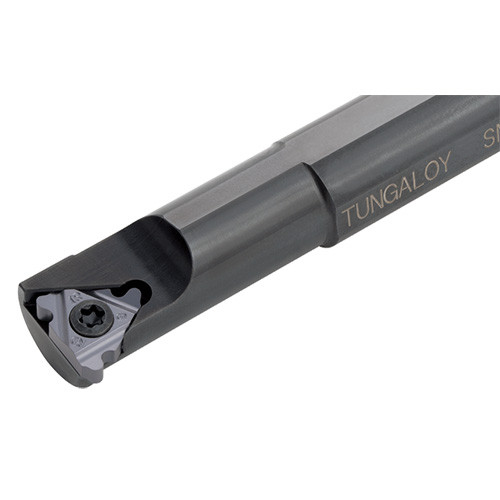

| Family Description | Screw-on internal threading toolholder | FamilyName | SNR/L |
| Remarks | Use right hand toolholders (R) with right hand inserts (R); and left hand toolholders (L) with left hand inserts (L). | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.3130
Name
Laydown Threading Indexable Holders
FamilyName
SNR/L
BrandName
Tungaloy
