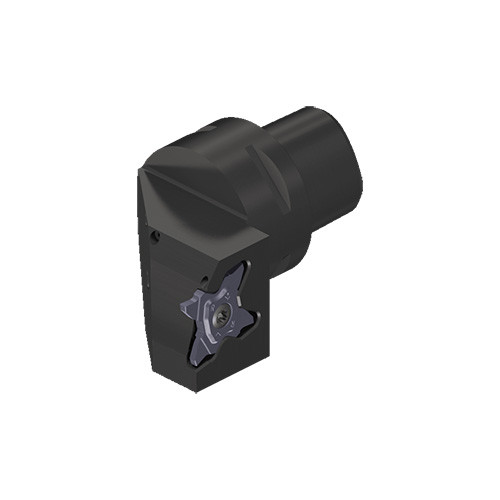

C4STCL27050-27-CHP
TungCap External grooving and threading toolholder with high pressure coolant capability
| Cutting Width Minimum (CWN) | 0.5 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 3.18 mm | Measurement Type | Metric |
| Overall Length (OAL) | 74 mm | Insert Seat Size Code (SSC) | 27 |
| Cutting Depth Maximum (CDX) | 6.4 mm | Functional Width (WF) | 25.5 mm |
| Application | | External grooving | Face contact interface | | Tool Assembly Length (LTA) | 50 mm |
| Body Material | Steel | Unit | M |
| Work Piece Parting Diameter Maximum (CUTDIA) | 11.8 mm |
Product Features
| Family Description | TungCap External grooving and threading toolholder with high pressure coolant capability | FamilyName | C-STCR/L-27-CHP |
| Remarks | Applicable for 14 MPa coolant For Dmax, click on "More Info". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Parting Off Indexable Holders
FamilyName
C-STCR/L-27-CHP
BrandName
Tungaloy
