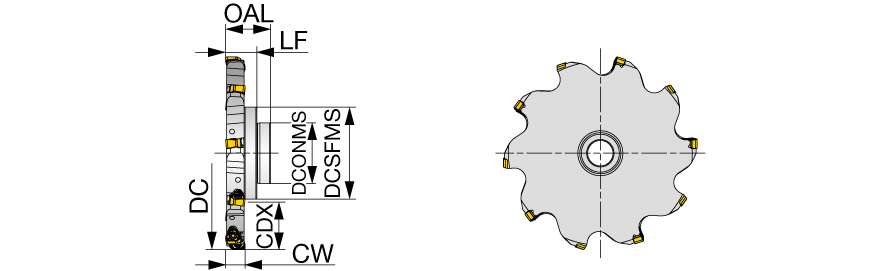

| Cutting Diameter (DC) | 125 mm | Measurement Type | Metric |
| Cutting Width (CW) | 10 mm | Tool Type | Double-sided slotting cutters |
| Cutting Depth Maximum (CDX) | 34 mm | Body Material | Steel |
| Peripheral Effective Cutting Edge Count (ZEFP) | 6 | Cutting Item Count (CICT) | 12 |
| Connection Diameter Machine Side (DCONMS) | 37 mm | Functional Length (LF) | 16 mm |
| Overall Length (OAL) | 23 mm | Master Insert Identification (MIID) | WNGU060308TN-MJ |
| Application | | Slot Milling | | Unit | M |
Product Features
| Family Description | Slot mill head with boss | FamilyName | TSW-C |
| Remarks | For how to assemble the cutter body to the adapter, click on "More Info". *Note : Dedicated wrench is sold separately. If coolant isn't supplied from the end of the arbor inlay,the center bolt corresponding to the adaptor is essential for coolant supplying. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name

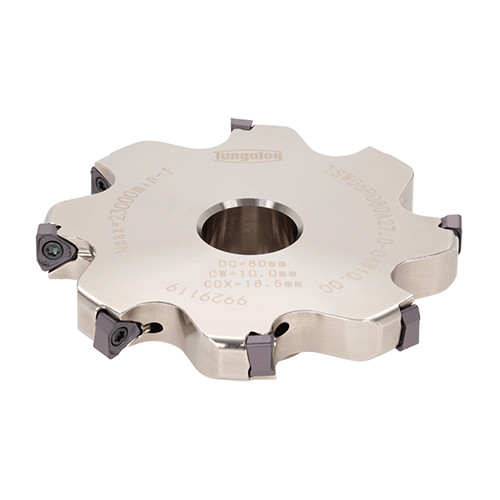

Disc w/Shank Indexable Slotting Cutters
FamilyName
TSW-C
BrandName
Tungaloy
Related Documentation

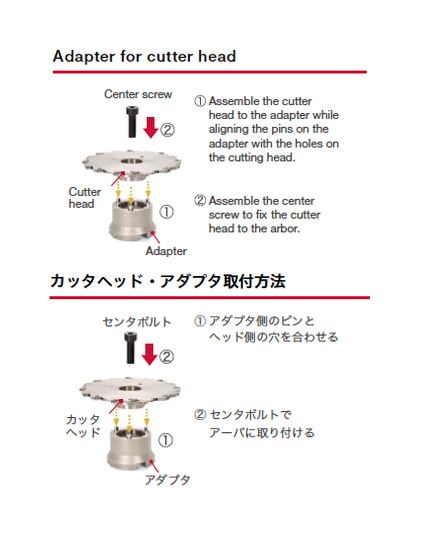

[Adapter for cutter head] @(1) Assemble the cutter head to the adapter while aligning the pins on the adapter with the holes on the cutting head. @(2) Assemble the center screw to fix the cutter head to the arbor.
