TSN12R100M25.4-19-05

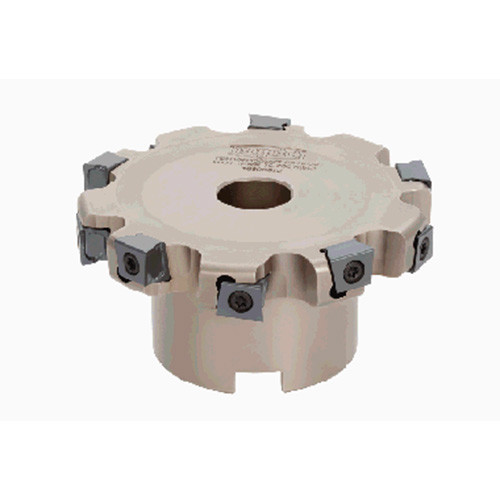

Radial drive type Slot milling cutter with tangentially mounted inserts
| Cutting Diameter (DC) | 100 mm | Measurement Type | Metric |
| Cutting Width (CW) | 19 mm | Tool Type | Double-sided slotting cutters |
| Cutting Depth Maximum (CDX) | 24 mm | Body Material | Steel |
| Peripheral Effective Cutting Edge Count (ZEFP) | 5 | Cutting Item Count (CICT) | 10 |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm | Functional Length (LF) | 50 mm |
| Overall Length (OAL) | 50 mm | Master Insert Identification (MIID) | LMEU120808ZNEN-MJ |
| Application | | Slot Milling | | Unit | M |
Product Features
| Family Description | Radial drive type Slot milling cutter with tangentially mounted inserts | FamilyName | TSN |
| COO | USA | BrandName | Tungaloy |
Shipping Info
Weight per item
1.3200
Name
Disc w/Shank Indexable Slotting Cutters
FamilyName
TSN
BrandName
Tungaloy
