314.030.085.009
| Application | | SwissBore tools | | Measurement Type | Metric |

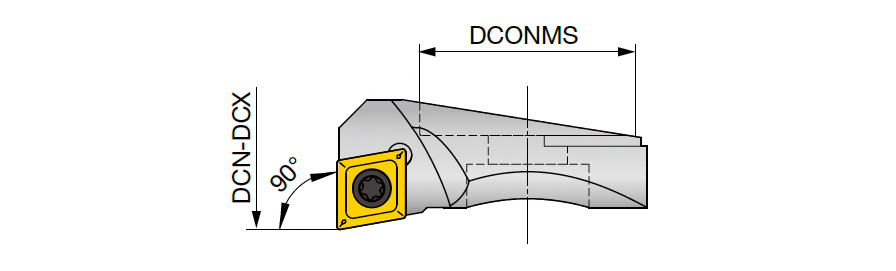

| Cutting Diameter Minimum (DCN) | 84.9 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 171.1 mm | Unit | M |
| Connection Diameter Machine Side (DCONMS) | 30 mm |
Product Features

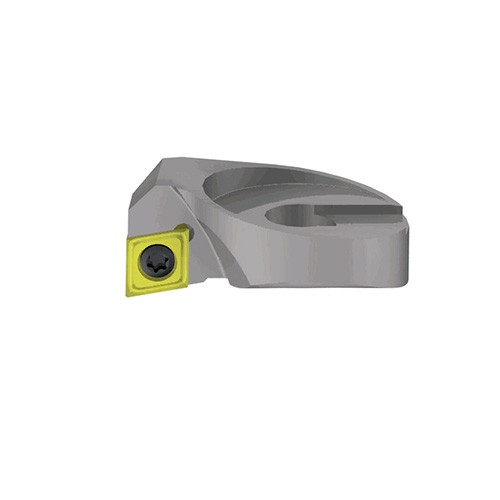

| Family Description | Insert holders 90 deg corner for CC** inserts | COO | SWITZERLAND |
| Remarks | DCN and DCX vary depending on the assembly of boring head, boring bar and insert holder. For DCN and DCX, click on "More Info". |
Shipping Info
Weight per item
0.0000
Related Documentation
DCN and DCX vary depending on the assembly of boring head, boring bar and insert holder.
