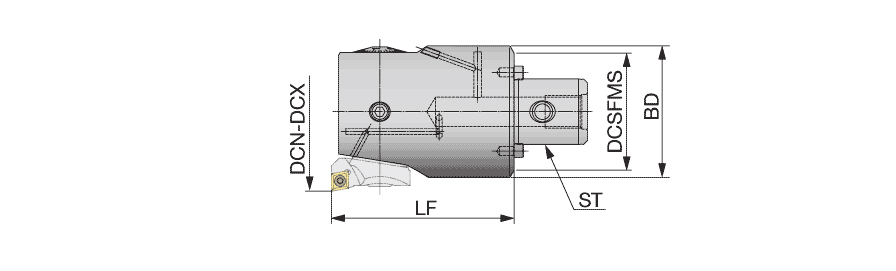

| Application | | SwissBore tools | | Connection Diameter Machine Side (DCONMS) | 28 mm |
| Cutting Diameter Minimum (DCN) | 66.9 mm | Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 105.1 mm | Body Material | Steel |
| Functional Length (LF) | 80 mm | Unit | M |
| Body Diameter (BD) | 59 mm |
Product Features

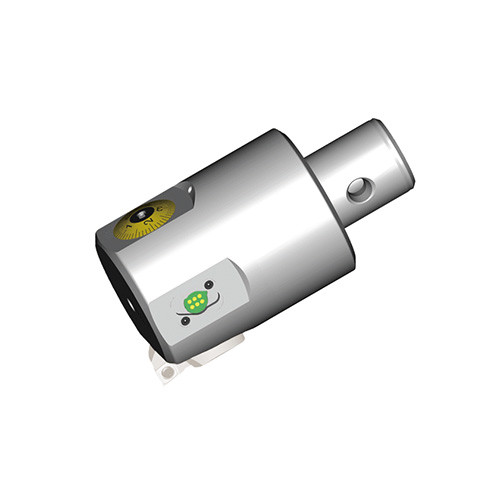

| Family Description | Digital Fine boring heads for dia 23.9 - 203.1 mm | COO | SWITZERLAND |

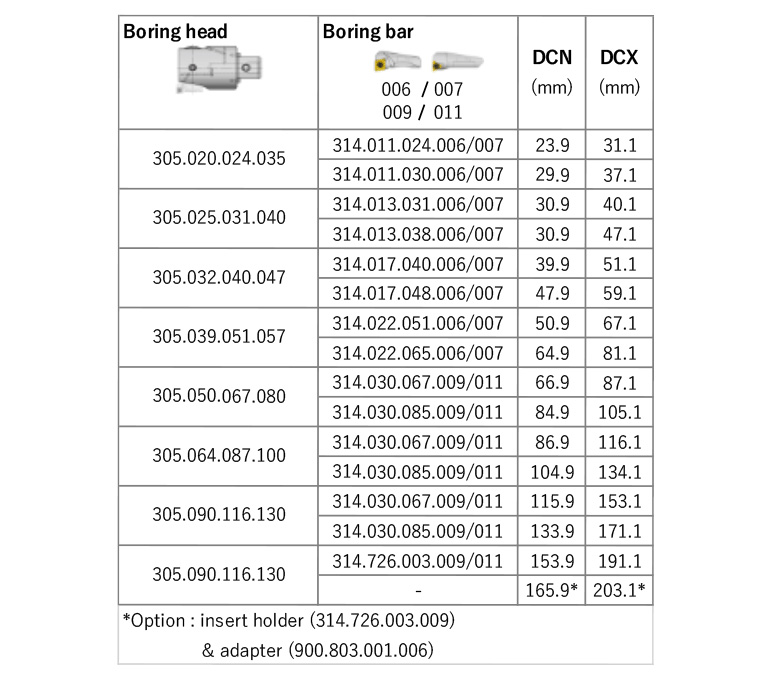

| Remarks | DCN and DCX vary depending on the assembly of boring head, boring bar and insert holder. For DCN and DCX, click on "More Info". Insert holders should be ordered individualy. Applicable for 7 MPa pressure coolant. |
Shipping Info
Weight per item
0.0000
Related Documentation
DCN and DCX vary depending on the assembly of boring head, boring bar and insert holder.
