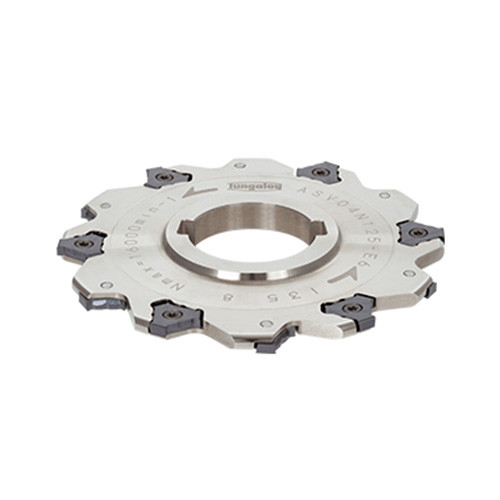

ASV05N080-8
Axial drive type slot milling cutter with tangentially mounted inserts
| Cutting Diameter (DC) | 80 mm | Overall Length (OAL) | 12 mm |
| Cutting Item Count (CICT) | 8 | Master Insert Identification (MIID) | TVKX0504** |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 | Application | | Slot Milling | |
| Cutting Depth Maximum (CDX) | 17 mm | Tool Type | Double-sided slotting cutters |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm | Measurement Type | Metric |
| Hub Thickness (THUB) | 12 mm | Body Material | Steel |
| Cutting Width (CW) | 8 mm | Unit | M |
Product Features
| Family Description | Axial drive type slot milling cutter with tangentially mounted inserts | FamilyName | ASV |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.3240
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
ASV
BrandName
Tungaloy
